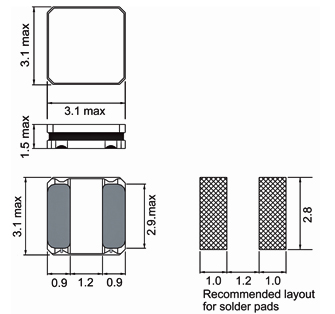

Chip Inductors for Power Applications (Shielded)

1212FPS

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L
(µH)
fL
(MHz)
Tol
± (%)
SRF
min
(MHz)
DCR (Ω) Rated DC Current (A) Get Sample
typ max Isat
typ
Isat
max
Irms
typ
Irms
max
1212FPS-1R0X-01 1.0 1.0 20,30 145 0.040 0.048 2.35 2.10 2.35 2.10
1212FPS-1R5X-01 1.5 1.0 20,30 130 0.055 0.066 2.00 1.80 2.10 1.90
1212FPS-2R2X-01 2.2 1.0 20,30 90 0.060 0.072 1.65 1.48 1.80 1.60
1212FPS-3R3X-01 3.3 1.0 20,30 75 0.093 0.112 1.40 1.21 1.60 1.45
1212FPS-4R7X-01 4.7 1.0 20,30 65 0.113 0.036 1.20 1.08 1.40 1.25
1212FPS-6R8X-01 6.8 1.0 20,30 50 0.176 0.211 1.05 0.90 1.10 0.90
1212FPS-100X-01 10 1.0 20,30 45 0.234 0.276 0.88 0.75 1.00 0.87
1212FPS-150X-01 15 1.0 20,30 33 0.352 0.422 0.68 0.58 0.80 0.65
1212FPS-220X-01 22 1.0 20,30 28 0.510 0.622 0.58 0.47 0.60 0.55
1212FPS-330X-01 33 1.0 20,30 22 0.799 0.959 0.46 0.39 0.50 0.45
1212FPS-470X-01 47 1.0 20,30 18 1.172 1.406 0.38 0.32 0.45 0.40
1212FPS-101X-01 100 1.0 20,30 11 2.433 2.920 0.27 0.23 0.29 0.25
Material
Ferrite
Standard Tolerance
30%
Packing Standard
Reel
2000 [-01]
