Chip Inductors for RF Applications (Wire wound - open)

0805AS

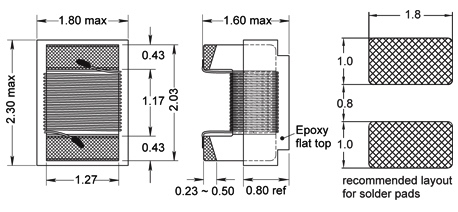

Technical Data & Specifications :

Complete Data Sheet :

S-parameter :

STETCO Cross List :

Print :


Part No Inductance
L
(nH)
fL
(MHz)
Tol
± (%)
Q
min
fQ
(MHz)
SRF
(MHz)
DCR
max
(Ω)
Rated DC
Current
(mA)
Get Sample
0805AS-2N7K-YY 2.7 250 10 80 1500 6000 min 0.08 600
0805AS-3N3K-YY 3.3 250 10 50 1500 6000 min 0.08 600
0805AS-3N6K-YY 3.6 250 10 25 1500 6000 min 0.18 600
0805AS-3N9K-YY 3.9 250 10 25 1000 6000 min 0.20 600
0805AS-5N6K-YY 5.6 250 10 53 1000 5500 min 0.11 600
0805AS-5N8K-YY 5.8 250 10 50 1000 5500 min 0.11 600
0805AS-6N8K-YY 6.8 250 10 50 1000 5500 min 0.11 600
0805AS-8N0K-YY 8.0 250 10 51 1000 4700 min 0.12 600
0805AS-8N2K-YY 8.2 250 10 50 1000 4700 min 0.12 600
0805AS-010J-YY 10 250 5 43 1000 4300 min 0.13 600
0805AS-011J-YY 11 250 5 65 1000 4000 min 0.13 600
0805AS-012J-YY 12 250 5 50 500 4000 min 0.15 600
0805AS-015J-YY 15 250 5 50 500 3400 min 0.17 600
0805AS-018J-YY 18 250 5 53 500 3300 min 0.20 500
0805AS-022J-YY 22 250 5 57 500 2600 min 0.22 500
0805AS-027J-YY 27 250 5 55 500 2500 min 0.25 500
0805AS-033J-YY 33 250 5 60 500 2050 min 0.27 500
0805AS-036J-YY 36 250 5 60 500 2050 min 0.27 600
0805AS-039J-YY 39 250 5 60 500 2000 min 0.29 500
0805AS-047J-YY 47 200 5 65 500 1650 min 0.31 500
0805AS-048J-YY 48 200 5 65 500 1580 min 0.30 500
0805AS-056J-YY 56 200 5 64 500 1550 min 0.34 500
0805AS-068J-YY 68 200 5 65 500 1450 min 0.38 400
0805AS-075J-YY 75 200 5 55 500 1300 min 0.42 400
0805AS-082J-YY 82 150 5 67 500 1300 min 0.42 400
Material
Ceramic
Standard Tolerance
Refer to table.
Engineer's Kits
EK-0805AS-X
Remarks
i) For not listed inductance values please check availability with us.
ii) 2% and 5% tolerance available on request.
Packing Standard
Taped / Reel
2500 [-01]
7500 [-04]
1000 [-08]
