Chip Inductors for RF Applications (Wire wound - open)

0805F

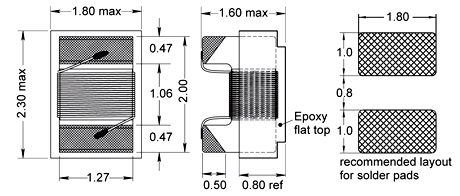

Technical Data & Specifications :

Complete Data Sheet :

S-parameter :

Print :


Part No Inductance
L (µH)
fL
(MHz)
Tol
± (%)
Q
min
fQ
(MHz)
SRF
(MHz)
DCR
max
(Ω)
Rated DC
Current
(mA)
Get Sample
0805F-R68K-YY 0.68 25.2 10 18 7.9 350 min 0.50 450
0805F-R82K-YY 0.82 25.2 10 18 7.9 350 min 0.55 400
0805F-1R0K-YY 1.0 7.9 10 20 7.9 350 min 0.50 250
0805F-1R2K-YY 1.2 7.9 10 20 7.9 300 typ 0.65 220
0805F-1R5K-YY 1.5 7.9 10 20 7.9 250 typ 0.75 200
0805F-1R8K-YY 1.8 7.9 10 20 7.9 200 typ 0.85 190
0805F-2R2K-YY 2.2 7.9 10 20 7.9 200 typ 1.70 130
0805F-2R7K-YY 2.7 7.9 10 20 7.9 200 typ 2.0 120
0805F-3R3K-YY 3.3 7.9 10 20 7.9 200 typ 3.3 100
0805F-3R9K-YY 3.9 7.9 10 20 7.9 150 typ 3.6 95
0805F-4R7K-YY 4.7 7.9 10 20 7.9 150 typ 3.8 90
0805F-5R6K-YY 5.6 7.9 10 20 7.9 80 typ 2.8 175
0805F-6R2K-YY 6.2 7.9 10 20 7.9 70 typ 3.0 165
0805F-6R8K-YY 6.8 7.9 10 20 7.9 65 typ 3.1 160
0805F-7R5K-YY 7.5 7.9 10 20 7.9 60 typ 3.4 160
0805F-8R2K-YY 8.2 7.9 10 20 7.9 55 typ 3.7 160
0805F-9R1K-YY 9.1 7.9 10 20 7.9 50 typ 3.7 150
0805F-100K-YY 10 7.9 10 20 7.9 45 typ 3.8 150
0805F-120K-YY 12 7.9 10 18 7.9 25 typ 4.2 150
0805F-150K-YY 15 7.9 10 18 7.9 25 typ 5.0 150
0805F-220K-YY 22 7.9 10 15 7.9 30 typ 6.0 97
Material
Ferrite
Standard Tolerance
Refer to table.
Engineer's Kits
EK-0805F-X
Remarks
i)   For not listed inductance values please check availability with us.
ii)  2% and 5% tolerance available on request.
Packing Standard
Taped / Reel
2500 [-01]
7500 [-04]
1000 [-08]
