Chip Inductors for RF Applications (Wire wound - open)

1008AS

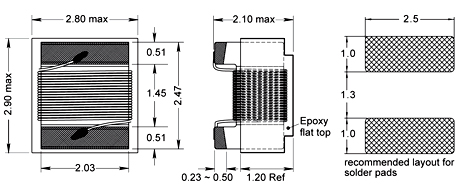

Technical Data & Specifications :

Complete Data Sheet :

S-parameter :

STETCO Cross List :

Print :


Part No Inductance
L (nH)
fL
(MHz)
Tol
± (%)
Q
min
fQ
(MHz)
SRF
(MHz)
DCR
max
(Ω)
Rated DC
Current
(mA)
Get Sample
1008AS-4N7J-YY 4.7 50 5 17 500 6000 min 0.15 600
1008AS-8N2J-YY 8.2 50 5 70 1000 5000 min 0.08 600
1008AS-010J-YY 10 50 5 50 500 4100 min 0.08 1000
1008AS-012J-YY 12 50 5 53 500 3300 min 0.09 1000
1008AS-015J-YY 15 50 5 70 500 2500 min 0.10 1000
1008AS-018J-YY 18 50 5 50 350 2500 min 0.11 1000
1008AS-022J-YY 22 50 5 55 350 2400 min 0.12 1000
1008AS-027J-YY 27 50 5 58 350 1600 min 0.13 1000
1008AS-030J-YY 30 50 5 65 350 1600 min 0.14 1000
1008AS-033J-YY 33 50 5 65 350 1600 min 0.14 1000
1008AS-039J-YY 39 50 5 60 350 1500 min 0.15 1000
1008AS-047J-YY 47 50 5 65 350 1500 min 0.16 1000
1008AS-056J-YY 56 50 5 65 350 1300 min 0.18 1000
1008AS-068J-YY 68 50 5 67 350 1300 min 0.20 1000
1008AS-082J-YY 82 50 5 63 350 1000 min 0.22 1000
1008AS-090J-YY 90 50 5 60 350 1000 min 0.56 650
1008AS-R10J-YY 100 25 5 63 350 1000 min 0.56 650
1008AS-R12J-YY 120 25 5 60 350 950 min 0.63 650
1008AS-R15J-YY 150 25 5 50 100 850 min 0.70 620
1008AS-R18J-YY 180 25 5 45 100 750 min 0.77 620
1008AS-R22J-YY 220 25 5 46 100 700 min 0.84 620
1008AS-R24J-YY 240 25 5 46 100 600 min 0.84 600
1008AS-R27J-YY 270 25 5 48 100 600 min 0.91 500
1008AS-R30J-YY 300 25 5 45 100 600 min 0.91 500
1008AS-R33J-YY 330 25 5 51 100 570 min 1.05 470
Material
Ceramic
Standard Tolerance
Refer to table.
Engineer's Kits
EK-1008AS-X
Remarks
i)   For not listed inductance values please check availability with us.
ii)  2% and 5% tolerance available on request.
Packing Standard
Taped / Reel
2000 [-01]
7500 [-04]
1000 [-08]
