Chip Inductors for RF Applications (Wire wound - open)

1008F

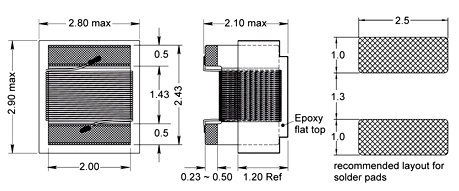

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L (µH)
fL
(MHz)
Tol
± (%)
Q
min
fQ
(MHz)
SRF
(MHz)
DCR
max
(Ω)
Rated DC
Current
(mA)
Get Sample
1008F-1R0K-YY 1.0 7.9 10 15 7.9 190 min 0.32 500
1008F-1R2K-YY 1.2 7.9 10 25 7.9 210 min 0.68 650
1008F-1R5K-YY 1.5 7.9 10 25 7.9 190 min 0.76 630
1008F-1R8K-YY 1.8 7.9 10 25 7.9 170 min 0.84 600
1008F-2R2K-YY 2.2 7.9 10 25 7.9 150 min 1.10 520
1008F-2R7K-YY 2.7 7.9 10 25 7.9 135 min 1.28 490
1008F-3R3K-YY 3.3 7.9 10 25 7.9 120 min 1.46 450
1008F-3R9K-YY 3.9 7.9 10 25 7.9 105 typ 1.56 420
1008F-4R7K-YY 4.7 7.9 10 25 7.9 90 typ 1.68 400
1008F-5R6K-YY 5.6 7.9 10 25 7.9 80 typ 1.82 380
1008F-6R8K-YY 6.8 7.9 10 25 7.9 70 typ 2.00 360
1008F-8R2K-YY 8.2 7.9 10 25 7.9 65 typ 2.65 330
1008F-100K-YY 10 7.9 10 25 7.9 60 typ 2.95 300
1008F-120K-YY 12 2.5 10 24 7.9 40 typ 4.80 280
1008F-150K-YY 15 2.5 10 23 7.9 35 typ 5.00 260
1008F-180K-YY 18 2.5 10 23 7.9 35 typ 5.80 220
1008F-220K-YY 22 2.5 10 22 7.9 30 typ 6.80 200
1008F-240K-YY 24 2.5 10 22 7.9 30 typ 6.80 200
1008F-270K-YY 27 2.5 10 23 7.9 30 typ 7.70 190
1008F-330K-YY 33 2.5 10 22 7.9 27 typ 8.90 180
1008F-390K-YY 39 2.5 10 20 7.9 20 typ 9.20 190
1008F-470K-YY 47 2.5 10 21 7.9 20 typ 11.0 150
1008F-820K-YY 82 2.5 10 13 7.9 14 typ 22.0 60
1008F-101K-YY 100 2.5 10 8 7.9 10 typ 25.0 55
Material
Ferrite
Standard Tolerance
Refer to table.
Engineer's Kits
EK-1008F-X
Remarks
i)   For not listed inductance values please check availability with us.
ii)  2% and 5% tolearance available on request.
Packing Standard
Taped / Reel
2000 [-01]
7500 [-04]
1000 [-08]
