Chip Inductors for RF Applications (Wire wound - open)

1206AS

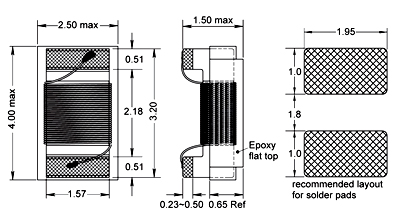

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L
(nH)
fL
(MHz)
Tol
± (%)
Q
min
fQ
(MHz)
SRF
(MHz)
DCR
max
(Ω)
Rated DC
Current
max (mA)
Get Sample
1206AS-3N3M-YY 3.3 100 20 30 300 6000 min 0.05 1000
1206AS-6N8K-YY 6.8 100 10 37 300 5500 min 0.07 1000
1206AS-010J-YY 10 100 5 40 300 4000 min 0.08 1000
1206AS-012J-YY 12 100 5 51 300 3200 min 0.08 1000
1206AS-015J-YY 15 100 5 51 300 3200 min 0.10 1000
1206AS-018J-YY 18 100 5 51 300 2800 min 0.10 1000
1206AS-022J-YY 22 100 5 52 300 2200 min 0.10 1000
1206AS-027J-YY 27 100 5 52 300 1800 min 0.11 1000
1206AS-033J-YY 33 100 5 56 300 1800 min 0.11 1000
1206AS-039J-YY 39 100 5 64 300 1800 min 0.12 1000
1206AS-047J-YY 47 100 5 64 300 1500 min 0.13 1000
1206AS-056J-YY 56 100 5 64 300 1450 min 0.14 1000
1206AS-068J-YY 68 100 5 61 300 1200 min 0.26 900
1206AS-082J-YY 82 100 5 66 300 1200 min 0.21 900
1206AS-R10J-YY 100 100 5 55 300 1100 min 0.26 850
1206AS-R12J-YY 120 100 5 75 300 1100 min 0.26 800
1206AS-R13J-YY 130 100 5 75 300 950 min 0.31 750
1206AS-R15J-YY 150 100 5 65 300 950 min 0.31 750
1206AS-R18J-YY 180 50 5 75 300 900 min 0.43 700
1206AS-R21J-YY 210 50 5 75 300 760 min 0.50 670
1206AS-R22J-YY 220 50 5 75 300 760 min 0.50 670
1206AS-R27J-YY 270 50 5 57 300 730 min 0.56 630
1206AS-R29J-YY 290 50 5 57 150 650 min 0.62 590
1206AS-R33J-YY 330 50 5 55 150 650 min 0.62 590
1206AS-R39J-YY 390 50 5 55 150 600 min 0.75 530
Material
Ceramic
Standard Tolerance
Refer to table.
Engineer's Kits
EK-1206AS-X
Remarks
i)   For not listed inductance values please check availability with us.
ii)  2% and 5% tolerance available on request.
Packing Standard
Taped / Reel
2000 [-01]
7500 [-04]
1000 [-08]
