Chip Inductors for RF Applications (Wire wound - open)

1812AF

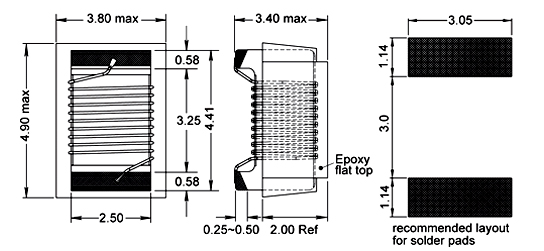

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L
(µH)
fL
(MHz)
Tol
± (%)
Q
min
fQ
(MHz)
SRF
(MHz)
DCR
max
(Ω)
Rated DC
Current
(mA)
Get Sample
1812AF-3R9K-YY 3.9 2.5 10 30 2.5 145 min 0.59 410
1812AF-100K-YY 10 2.5 10 42 2.5 23 typ 1.8 310
1812AF-120K-YY 12 2.5 10 42 2.5 40 typ 2.0 310
1812AF-150K-YY 15 2.5 10 42 2.5 40 typ 2.5 290
1812AF-180K-YY 18 2.5 10 45 2.5 40 typ 2.8 270
1812AF-220K-YY 22 2.5 10 45 2.5 40 typ 3.2 260
1812AF-270K-YY 27 2.5 10 45 2.5 36 typ 3.6 240
1812AF-330K-YY 33 2.5 10 45 2.5 34 typ 4.0 230
1812AF-390K-YY 39 2.5 10 45 2.5 32 typ 4.5 210
1812AF-470K-YY 47 2.5 10 42 2.5 30 typ 5.0 200
1812AF-560K-YY 56 2.5 10 42 2.5 27 typ 5.5 190
1812AF-680K-YY 68 2.5 10 40 2.5 23 typ 6.0 180
1812AF-820K-YY 82 2.5 10 40 2.5 19 typ 7.0 170
1812AF-101K-YY 100 2.5 10 40 2.5 13 typ 8.0 150
1812AF-121K-YY 120 0.79 10 33 0.79 11 typ 11.5 135
1812AF-151K-YY 150 0.79 10 36 0.79 10 typ 13.0 125
1812AF-181K-YY 180 0.79 10 36 0.79 9.0 typ 14.2 120
1812AF-221K-YY 220 0.79 10 38 0.79 6.0 typ 16.2 115
1812AF-271K-YY 270 0.79 10 38 0.79 4.5 typ 20.5 105
1812AF-331K-YY 330 0.79 10 38 0.79 3.5 typ 22.5 100
1812AF-391K-YY 390 0.79 10 38 0.79 3.0 typ 24.5 90
1812AF-471K-YY 470 0.79 10 33 0.79 2.1 typ 26.5 85
1812AF-561K-YY 560 0.79 10 33 0.79 2.0 typ 28.5 75
1812AF-681K-YY 680 0.79 10 27 0.79 1.8 typ 38.0 60
1812AF-821K-YY 820 0.79 10 27 0.79 1.7 typ 41.0 55
Material
Ceramic & Ferrite
Standard Tolerance
Refer to table.
Engineer's Kits
EK-1812AF-X
Remarks
i) For not listed inductance values please check availability with us.
ii) 2% and 5% tolerance available on request.
Packing Standard
Reel
600 [-01]
2200 [-04]
