Chip Inductors for RF Applications (Wire wound - open)

1812AS

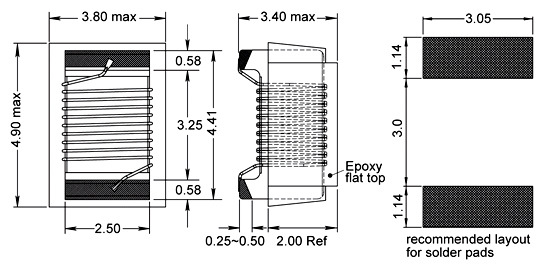

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L (µH)
fL
(MHz)
Tol
± (%)
Q
min
fQ
(MHz)
SRF
(MHz)
DCR
max
(Ω)
Rated DC
Current
max (mA)
Get Sample
1812AS-015K-YY 0.015 50 10 70 500 2400 min 0.035 1550
1812AS-022K-YY 0.022 50 10 70 500 2300 min 0.050 1550
1812AS-033K-YY 0.033 50 10 70 500 1850 min 0.060 1500
1812AS-047K-YY 0.047 50 10 70 250 1100 min 0.060 1500
1812AS-056K-YY 0.056 50 10 70 250 900 min 0.070 1350
1812AS-068K-YY 0.068 50 10 70 250 900 min 0.070 1350
1812AS-082K-YY 0.082 50 10 70 250 900 min 0.080 1300
1812AS-R10K-YY 0.10 50 10 70 100 650 min 0.080 1300
1812AS-R12K-YY 0.12 50 10 70 100 650 min 0.10 1050
1812AS-R15K-YY 0.15 50 10 68 100 600 min 0.13 1000
1812AS-R22K-YY 0.22 50 10 68 100 600 min 0.17 800
1812AS-R27K-YY 0.27 50 10 68 100 500 min 0.19 800
1812AS-R33K-YY 0.33 50 10 64 100 400 min 0.20 700
1812AS-R37K-YY 0.37 50 10 64 100 400 min 0.22 650
1812AS-R47K-YY 0.47 50 10 64 100 400 min 0.30 500
1812AS-1R0K-YY 1.0 7.9 10 62 50 277 min 1.20 480
1812AS-1R2K-YY 1.2 7.9 10 60 50 240 min 1.20 480
1812AS-1R5K-YY 1.5 7.9 10 60 50 220 min 1.60 430
1812AS-1R8K-YY 1.8 7.9 10 60 50 200 min 2.00 380
1812AS-2R2K-YY 2.2 7.9 10 63 50 180 min 2.20 340
1812AS-2R7K-YY 2.7 7.9 10 63 50 160 min 3.20 300
1812AS-3R3K-YY 3.3 7.9 10 50 50 145 typ 3.80 270
1812AS-3R9K-YY 3.9 7.9 10 50 50 130 typ 5.00 240
1812AS-4R7K-YY 4.7 7.9 10 50 50 120 typ 5.40 230
1812AS-5R6K-YY 5.6 7.9 10 40 50 105 typ 5.70 220
Material
Ceramic
Standard Tolerance
Refer to table.
Engineer's Kits
EK-1812AS-X
Remarks
i)   For not listed inductance values please check availability with us.
ii)  2% and 5% tolerance available on request.
Packing Standard
Reel
600 [-01]
2200 [-04]
