Leaded Inductors (Fixed Choke Coils) - Non-magnetic

05CCM

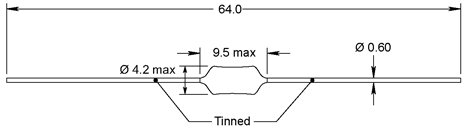

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L (µH)		 fL
(MHz)		 Tol
± (%)		 Q
min		 fQ
(MHz)		 SRF
typ
(MHz)		 DCR
max
(Ω)		 Rated DC
Current
max (mA)		 Get Sample
05CCM-R10X-YY 0.10 1 10,20 50 25 700 0.025 2800
05CCM-R12X-YY 0.12 1 10,20 50 25 600 0.035 2560
05CCM-R15X-YY 0.15 1 10,20 50 25 530 0.038 2310
05CCM-R18X-YY 0.18 1 10,20 50 25 490 0.043 2200
05CCM-R22X-YY 0.22 1 10,20 50 25 450 0.048 1875
05CCM-R27X-YY 0.27 1 10,20 50 25 400 0.055 1760
05CCM-R33X-YY 0.33 1 10,20 55 25 360 0.065 1650
05CCM-R39X-YY 0.39 1 10,20 50 25 350 0.090 1525
05CCM-R47X-YY 0.47 1 10,20 55 25 310 0.097 1475
05CCM-R56X-YY 0.56 1 10,20 50 25 280 0.115 1435
05CCM-R68X-YY 0.68 1 10,20 55 25 250 0.150 1315
05CCM-R82X-YY 0.82 1 10,20 55 25 225 0.210 1020
05CCM-1R0X-YY 1.00 1 10,20 53 25 200 0.300 890
05CCM-1R2X-YY 1.20 1 10,20 30 7.9 180 0.360 820
05CCM-1R5X-YY 1.50 1 10,20 30 7.9 160 0.520 680
05CCM-1R8X-YY 1.80 1 10,20 30 7.9 150 0.675 570
05CCM-2R2X-YY 2.20 1 10,20 35 7.9 135 1.000 480
05CCM-2R7X-YY 2.70 1 10,20 35 7.9 120 1.360 400
Material
Phenolic
Standard Tolerance
20%
Packing Standard
Packing Form Taped / Ammopack Taped / Reel
axial 1200 [-02] 3500 [-01]
radial 2500 [-32] 1500 [-31]
