Leaded Inductors (Fixed Choke Coils)

HBCC

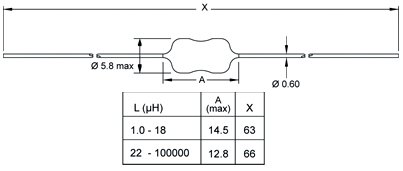

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L (µH)
fL
(MHz)
Tol
± (%)
Q
min
fQ
(MHz)
SRF
min
(MHz)
DCR
max
(Ω)
Rated DC
Current
(A)
Get Sample
HBCC-1R0X-YY 1.0 1 5,10 40 7.96 200 0.08 2.20
HBCC-1R2X-YY 1.2 1 5,10 40 7.96 185 0.09 2.15
HBCC-1R5X-YY 1.5 1 5,10 40 7.96 170 0.10 2.10
HBCC-1R8X-YY 1.8 1 5,10 40 7.96 155 0.10 2.00
HBCC-2R2X-YY 2.2 1 5,10 40 7.96 140 0.11 1.90
HBCC-2R7X-YY 2.7 1 5,10 40 7.96 130 0.12 1.80
HBCC-3R3X-YY 3.3 1 5,10 40 7.96 120 0.14 1.75
HBCC-3R9X-YY 3.9 1 5,10 40 7.96 110 0.15 1.70
HBCC-4R7X-YY 4.7 1 5,10 40 7.96 100 0.16 1.60
HBCC-5R6X-YY 5.6 1 5,10 40 7.96 90 0.17 1.55
HBCC-6R8X-YY 6.8 1 5,10 40 7.96 80 0.19 1.50
HBCC-8R2X-YY 8.2 1 5,10 40 7.96 70 0.20 1.45
HBCC-100X-YY 10 1 5,10 60 2.52 60 0.22 1.40
HBCC-120X-YY 12 0.02 5,10 60 2.52 40 0.26 1.30
HBCC-150X-YY 15 0.02 5,10 60 2.52 20 0.30 1.25
HBCC-180X-YY 18 0.02 5,10 60 2.52 17 0.33 1.20
HBCC-220X-YY 22 0.02 5,10 40 2.52 12 0.35 1.10
HBCC-250X-YY 25 0.02 5,10 40 2.52 10 0.39 1.00
HBCC-270X-YY 27 0.02 5,10 40 2.52 10 0.39 1.00
HBCC-330X-YY 33 0.02 5,10 40 2.52 8.0 0.43 0.90
HBCC-390X-YY 39 0.02 5,10 40 2.52 6.5 0.47 0.85
HBCC-470X-YY 47 0.02 5,10 40 2.52 5.0 0.50 0.80
HBCC-560X-YY 56 0.02 5,10 40 2.52 4.5 0.55 0.75
HBCC-680X-YY 68 0.02 5,10 30 2.52 4.0 0.60 0.70
HBCC-820X-YY 82 0.02 5,10 30 2.52 3.7 0.65 0.65
Material
Ferrite
Standard Tolerance
L: 1µH - 33µH = ±10%, L: 39µH - 100000µH = ±5%
Remarks

* This inductance does not comply to IEC standard

Packing Standard
Packing Form Taped / Ammopack Taped / Reel
axial 600 [-02] 1200 [-01]
radial 1800 [-32] 1000 [-31]
