Leaded Inductors (Fixed Choke Coils)

VHBCC

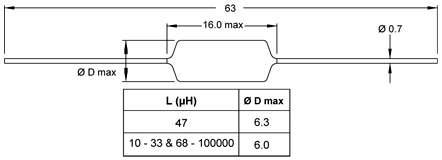

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L (µH)
fL
(kHz)
Tol
± (%)
Q
min
fQ
(kHz)
SRF
min
(MHz)
DCR
max
(Ω)
Rated DC Current (mA) Get Sample
| 1 | sat
VHBCC-100X-YY 10 1000 5,10 55 2520 38 0.09 2900 4600
VHBCC-150X-YY 15 100 5,10 55 2520 36 0.13 2250 3800
VHBCC-220X-YY 22 100 5,10 50 2520 15 0.15 2030 3100
VHBCC-330X-YY 33 100 5,10 35 2520 5.2 0.16 1980 2550
VHBCC-470X-YY 47 100 5,10 30 2520 4.8 0.18 1800 2100
VHBCC-680X-YY 68 100 5,10 20 2520 3.8 0.25 1620 1790
VHBCC-101X-YY 100 100 5,10 40 796 2.5 0.62 1060 1490
VHBCC-151X-YY 150 100 5,10 35 796 2.0 0.80 960 1210
VHBCC-181X-YY 180 100 5,10 35 796 1.6 0.85 690 1000
VHBCC-221X-YY 220 100 5,10 35 796 1.6 1.2 690 900
VHBCC-331X-YY 330 100 5,10 25 796 1.4 1.4 630 735
VHBCC-391X-YY 390 100 5,10 25 796 1.3 1.6 590 675
VHBCC-471X-YY 470 100 5,10 20 796 1.2 1.8 550 630
VHBCC-561X-YY 560 100 5,10 15 796 1.06 2.3 525 610
VHBCC-681X-YY 680 100 5,10 15 796 0.92 2.6 500 590
VHBCC-821X-YY 820 100 5,10 70 252 0.72 4.2 448 550
VHBCC-102X-YY 1000 100 5,10 70 252 0.72 4.2 400 490
VHBCC-122X-YY 1200 100 5,10 70 252 0.68 5.5 350 448
VHBCC-152X-YY 1500 100 5,10 70 252 0.65 6 320 400
VHBCC-182X-YY 1800 100 5,10 70 252 0.65 6 300 410
VHBCC-222X-YY 2200 100 5,10 65 252 0.5 10 250 340
VHBCC-272X-YY 2700 100 5,10 50 252 0.42 12 243 298
VHBCC-332X-YY 3300 100 5,10 50 252 0.42 12 220 270
VHBCC-392X-YY 3900 100 5,10 30 252 0.29 18 200 245
VHBCC-472X-YY 4700 100 5,10 30 252 0.31 18 200 220
Material
Ferrite
Standard Tolerance
L: 10µH - 22µH = ±10%, L: 33µH - 100000µH = ±5%
Packing Standard
Packing Form Taped / Ammopack Taped / Reel
axial 500 [-02] 1200 [-01]
