Plugable Indutors (Pin Type Coils) - with Tube

07P

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L (µH)
fL
(MHz)
Tol
± (%)
Q
min
fQ
(MHz)
SRF
min
(MHz)
DCR
max
(Ω)
Rated DC
Current
(mA)
Get Sample
07P-101X-YY 100 0.02 5,10 60 0.796 5.0 0.50 460
07P-151X-YY 150 0.02 5,10 70 0.796 4.0 0.85 350
07P-201X-YY 200 0.02 5,10 80 0.796 3.2 1.00 320
07P-221X-YY 220 0.02 5,10 80 0.796 3.0 1.00 320
07P-251X-YY 250 0.02 5,10 75 0.796 2.8 1.20 300
07P-681X-YY 680 0.02 5,10 80 0.796 2.3 3.70 170
07P-821X-YY 820 0.02 5,10 80 0.796 2.1 4.10 160
07P-102X-YY 1000 0.02 5,10 100 0.252 1.8 5.40 150
07P-122X-YY 1200 0.02 5,10 100 0.252 1.6 5.80 140
07P-152X-YY 1500 0.02 5,10 100 0.252 1.5 6.50 130
07P-182X-YY 1800 0.02 5,10 100 0.252 1.4 7.50 120
07P-222X-YY 2200 0.02 5,10 100 0.252 1.3 8.80 110
07P-272X-YY 2700 0.02 5,10 100 0.252 1.2 9.80 100
07P-332X-YY 3300 0.02 5,10 100 0.252 1.1 13.0 80
07P-392X-YY 3900 0.02 5,10 100 0.252 1.0 16.5 75
07P-472X-YY 4700 0.02 5,10 100 0.252 0.9 18.5 70
07P-562X-YY 5600 0.02 5,10 100 0.252 0.8 21.0 60
07P-682X-YY 6800 0.02 5,10 100 0.252 0.7 29.0 55
07P-822X-YY 8200 0.02 5,10 100 0.252 0.65 33.0 50
Material
Ferrite
Standard Tolerance
L: 100µH - 150µH = ±10%, L: 200µH - 8200µH = ±5%
Remarks

Also available without tube.
Also available with shorter leads.

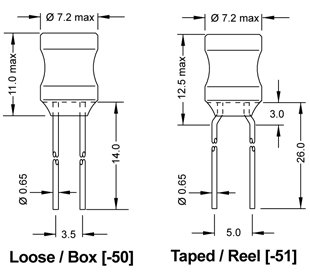

Packing Standard
Packing Form Loose / Box Taped / Reel
radial 500 [-50] 700 [-51]
