Plaugable Inductors (Pin Type Coils) - with Cap

07P/F

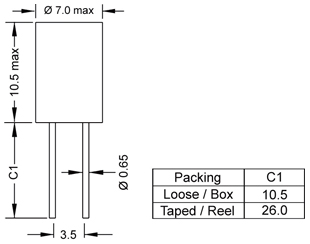

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L
(µH)
fL
(MHz)
Tol
± (%)
Q
min
fQ
(MHz)
SRF
min
(MHz)
DCR
max
(Ω)
Rated DC
Current
(mA)
Get Sample
07P/F-681K-YY 680 0.02 10 80 0.796 2.3 3.7 170
07P/F-821K-YY 820 0.02 10 80 0.796 2.1 4.1 160
07P/F-102X-YY 1000 0.02 5,10 100 0.252 1.8 5.4 150
07P/F-122X-YY 1200 0.02 5,10 100 0.252 1.6 5.8 140
07P/F-152X-YY 1500 0.02 5,10 100 0.252 1.5 6.5 130
07P/F-182X-YY 1800 0.02 5,10 100 0.252 1.4 7.5 120
07P/F-222X-YY 2200 0.02 5,10 100 0.252 1.3 8.8 110
07P/F-272X-YY 2700 0.02 5,10 100 0.252 1.2 9.8 100
07P/F-332X-YY 3300 0.02 5,10 100 0.252 1.1 13 80
07P/F-392X-YY 3900 0.02 5,10 100 0.252 1 16.5 75
07P/F-472X-YY 4700 0.02 5,10 100 0.252 0.9 18.5 70
07P/F-562X-YY 5600 0.02 5,10 100 0.252 0.8 21 60
07P/F-682X-YY 6800 0.02 5,10 100 0.252 0.7 29 55
07P/F-822X-YY 8200 0.02 5,10 100 0.252 0.65 33 50
Material
Ferrite
Standard Tolerance
L: 680µH - 820µH & 6800µH -8200µH = ±10%, L: 1000µH - 5600µH = ±5%
Remarks

Also available with shorter leads.

Packing Standard
Packing Form Loose / Box Reel
radial 500 [-50] 700 [-51]
