Plugable Inductors (Pin Type Coils)

Technical Data & Specifications :

Complete Data Sheet :

Print :

Part No	Inductance L (µH)	fL (MHz)	Tol ± (%)	Q min	fQ (MHz)	SRF min (MHz)	DCR max (Ω)	Rated DC Current (A)		Get Sample
Part No	Inductance L (µH)	fL (MHz)	Tol ± (%)	Q min	fQ (MHz)	SRF min (MHz)	DCR max (Ω)	\| max	\|sat typ	Get Sample
09P/F-100K-YY	10	0.02	10	85	2.52	18.00	0.03	3.150	2.720
09P/F-150K-YY	15	0.02	10	70	2.52	14.00	0.04	3.000	1.880
09P/F-220K-YY	22	0.02	10	55	2.52	12.00	0.05	2.500	1.800
09P/F-270K-YY	27	0.02	10	55	2.52	10.50	0.07	2.320	1.600
09P/F-330K-YY	33	0.02	10	55	2.52	8.35	0.08	2.265	1.550
09P/F-470K-YY	47	0.02	10	50	2.52	6.50	0.10	2.000	1.200
09P/F-560K-YY	56	0.02	10	40	2.52	6.00	0.12	1.800	1.000
09P/F-680K-YY	68	0.02	10	40	2.52	5.00	0.20	1.340	0.950
09P/F-101K-YY	100	0.02	10	40	0.796	4.50	0.25	1.200	0.810
09P/F-121K-YY	120	0.02	10	40	0.796	4.20	0.28	1.140	0.740
09P/F-151K-YY	150	0.02	10	40	0.796	3.50	0.35	1.000	0.650
09P/F-221K-YY	220	0.02	10	40	0.796	3.00	0.50	0.800	0.530
09P/F-271K-YY	270	0.02	10	40	0.796	3.00	0.55	0.750	0.500
09P/F-331K-YY	330	0.02	10	40	0.796	2.05	0.95	0.650	0.450
09P/F-391K-YY	390	0.02	10	40	0.796	2.00	1.05	0.550	0.400
09P/F-471K-YY	470	0.02	10	40	0.796	1.80	1.30	0.540	0.400
09P/F-561K-YY	560	0.02	10	40	0.796	1.75	1.45	0.500	0.350
09P/F-681K-YY	680	0.02	10	40	0.796	1.60	1.65	0.450	0.300
09P/F-821K-YY	820	0.02	10	70	0.252	1.50	2.20	0.400	0.250
09P/F-102X-YY	1000	0.02	5,10	70	0.252	1.40	2.30	0.400	0.250
09P/F-122X-YY	1200	0.02	5,10	70	0.252	1.20	2.65	0.350	0.225
09P/F-152X-YY	1500	0.02	5,10	70	0.252	1.00	3.30	0.300	0.200
09P/F-182X-YY	1800	0.02	5,10	70	0.252	0.95	3.90	0.300	0.200
09P/F-222X-YY	2200	0.02	5,10	70	0.252	0.90	5.05	0.250	0.155
09P/F-272X-YY	2700	0.02	5,10	75	0.252	0.75	7.00	0.225	0.150

Material

Ferrite

Standard Tolerance

Refer to table

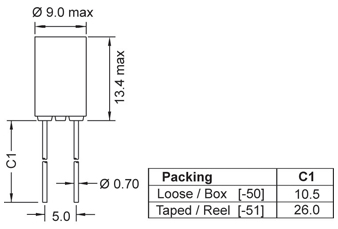

Packing Standard

Loose / Box	Taped / Reel
500 [-50]	500 [-51]
