Plugable Inductors (Pin Type Coils)

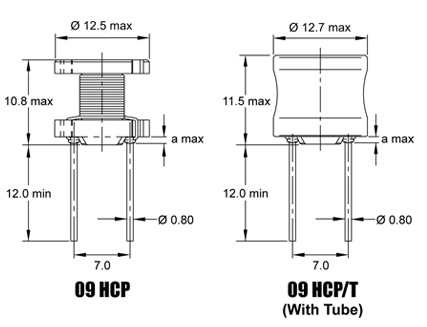

09HCP, 09HCP/T

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L
(µH)
fL
(kHz)
Tol
± (%)
DCR
max
(Ω)
Rated DC Current Dimension
a
max
Get Sample
| N (A) | sat (A)
09HCP-100M-50 10 100 @ 1V 20 0.014 5.12 6.70 3.0
09HCP-120M-50 12 100 @ 1V 20 0.018 5.00 5.90 3.0
09HCP-150M-50 15 100 @ 1V 20 0.020 4.60 5.30 3.0
09HCP-180M-50 18 100 @ 1V 20 0.024 4.50 4.80 3.0
09HCP-220M-50 22 100 @ 1V 20 0.031 4.10 4.30 3.0
09HCP-270M-50 27 100 @ 1V 20 0.036 3.50 3.90 3.0
09HCP-330M-50 33 100 @ 1V 20 0.037 3.10 3.60 3.0
09HCP-390M-50 39 100 @ 1V 20 0.044 3.10 3.30 3.0
09HCP-470M-50 47 100 @ 1V 20 0.054 3.10 3.00 3.0
09HCP-560M-50 56 100 @ 1V 20 0.062 2.60 2.80 3.0
09HCP-680M-50 68 100 @ 1V 20 0.072 2.60 2.50 3.0
09HCP-820X-50 82 100 @ 1V 10,20 0.089 2.30 2.10 3.0
09HCP-101X-50 100 100 @ 1V 10,20 0.103 2.30 2.00 3.0
09HCP-121X-50 120 100 @ 1V 10,20 0.128 1.90 1.80 3.0
09HCP-151X-50 150 100 @ 1V 10,20 0.173 1.60 1.60 2.0
09HCP-181X-50 180 100 @ 1V 10,20 0.191 1.50 1.50 2.0
09HCP-221X-50 220 100 @ 1V 10,20 0.226 1.40 1.30 2.0
09HCP-271X-50 270 100 @ 1V 10,20 0.288 1.30 1.20 2.0
09HCP-331X-50 330 100 @ 1V 10,20 0.332 1.30 1.10 2.0
09HCP-391X-50 390 100 @ 1V 10,20 0.442 1.00 1.00 2.0
09HCP-471X-50 470 100 @ 1V 10,20 0.498 1.00 0.90 2.0
09HCP-561X-50 560 100 @ 1V 10,20 0.564 1.00 0.80 2.0
09HCP-681X-50 680 100 @ 1V 10,20 0.644 0.80 0.80 2.0
09HCP-821X-50 820 100 @ 1V 10,20 0.911 0.70 0.70 2.0
09HCP-102X-50 1000 100 @ 1V 10,20 1.022 0.60 0.70 2.0
Material
Ferrite
Standard Tolerance
L: 10µH - 68µH = ±20%, L: 82µH - 1200µH = ±10%
Remarks

Also available with shorter leads.

Packing Standard
Packing Form Loose / Box
radial 200 [-50]
