Suppression Coils

77A

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L (µH)
fL
(kHz)
Tol
± (%)
DCR
max
(Ω)
Rated DC
Current
(A)

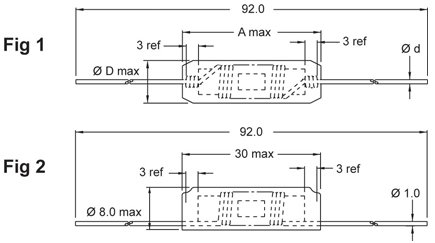

Dimension (mm) Fig Get Sample
A max ØD max Ø d
77A-3R9M-00 3.9 1000 20 0.011 12.0 30 8 1.0 2
77A-5R6M-YY 5.6 1000 20 0.021 8.0 26 8 0.8 1
77A-100M-YY 10 1000 20 0.042 5.0 26 8 0.8 1
77A-150M-YY 15 100 20 0.060 4.0 26 9 0.8 1
77A-330M-YY 33 100 20 0.084 3.5 26 10 0.8 1
77A-400M-YY 40 100 20 0.084 3.0 26 11 0.8 1
77A-680M-YY 68 100 20 0.12 3.0 26 11 0.8 1
77A-800M-YY 80 100 20 0.15 2.5 26 11 0.8 1
77A-101M-YY 100 100 20 0.18 2.5 26 11 0.8 1
77A-121M-YY 120 100 20 0.36 2.0 26 11 0.8 1
77A-151M-YY 150 100 20 0.36 1.8 26 11 0.8 1
77A-331M-YY 330 100 20 0.60 1.4 26 11 0.8 1
77A-471M-YY 470 100 20 1.20 1.0 26 11 0.8 1
77A-501M-YY 500 100 20 0.84 1.2 26 11 0.8 1
77A-681M-YY 680 100 20 1.20 1.0 26 11 0.8 1
77A-821M-YY 820 100 20 1.20 0.95 26 11 0.8 1
77A-102M-YY 1000 100 20 1.80 0.80 26 11 0.8 1
77A-152M-YY 1500 10 20 2.40 0.70 26 11 0.8 1
77A-332M-YY 3300 10 20 4.80 0.50 26 11 0.8 1
77A-472M-YY 4700 10 20 6.80 0.36 26 11 0.8 1
77A-562M-YY 5600 10 20 9.60 0.36 26 11 0.8 1
77A-682M-YY 6800 10 20 9.60 0.35 26 11 0.8 1
77A-103M-YY 10000 10 20 14.4 0.30 26 11 0.8 1
Material
Ferrite
Standard Tolerance
±20%
Remarks

Available also without insulating material for 77A/B-5R6M and 77A/B-100M.

Packing Standard
Loose / Box Taped / Reel
300 [-00] 500 [-01]
