Chip Inductors for Power Applications (Shielded)

242418FP New!

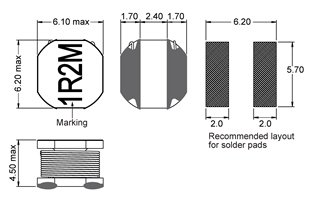

Technical Data & Specifications :

Complete Data Sheet :

S-parameter :

Print :


Part No Inductance
L (µH)
fL Tol
± (%)
SRF
typ
(MHz)
DCR max
(mΩ)
Rated DC Current (A) Get Sample
|sat |rms
242418FP-R82M-01 0.82 1 MHz @ 1 V 20 145 16 8.00 5.00
242418FP-1R2M-01 1.2 1 MHz @ 1 V 20 145 18 8.00 5.00
242418FP-1R5M-01 1.5 1 MHz @ 1 V 20 92 25 6.50 4.50
242418FP-2R2M-01 2.2 1 MHz @ 1 V 20 65 25 6.00 4.00
242418FP-2R7M-01 2.7 1 MHz @ 1 V 20 50 35 5.25 4.00
242418FP-3R3M-01 3.3 1 MHz @ 1 V 20 45 45 4.50 4.00
242418FP-3R9M-01 3.9 1 MHz @ 1 V 20 40 45 4.00 4.00
242418FP-4R7M-01 4.7 1 MHz @ 1 V 20 39 55 3.90 3.40
242418FP-5R6M-01 5.6 1 MHz @ 1 V 20 30 55 3.50 3.30
242418FP-6R8M-01 6.8 1 MHz @ 1 V 20 30 75 3.20 3.00
242418FP-8R2M-01 8.2 1 MHz @ 1 V 20 25 80 3.00 2.80
242418FP-100M-01 10 1 MHz @ 1 V 20 20 90 2.80 2.20
242418FP-120M-01 12 1 MHz @ 1 V 20 20 110 2.45 2.00
242418FP-150M-01 15 1 MHz @ 1 V 20 15 125 2.16 2.00
242418FP-180M-01 18 1 MHz @ 1 V 20 12 135 2.10 1.90
242418FP-220M-01 22 1 MHz @ 1 V 20 12 170 1.75 1.60
242418FP-270M-01 27 1 MHz @ 1 V 20 10 195 1.65 1.60
242418FP-330M-01 33 1 MHz @ 1 V 20 10 235 1.56 1.45
242418FP-390M-01 39 1 MHz @ 1 V 20 10 320 1.40 1.30
242418FP-470M-01 47 1 MHz @ 1 V 20 9.0 355 1.40 1.20
242418FP-560M-01 56 1 MHz @ 1 V 20 7.8 420 1.20 1.10
242418FP-680M-01 68 1 MHz @ 1 V 20 7.0 460 1.10 0.95
242418FP-820M-01 82 1 MHz @ 1 V 20 6.5 520 1.00 0.90
242418FP-101X-01 100 1 MHz @ 1 V 10,20 5.0 620 0.90 0.80
242418FP-121X-01 120 1 MHz @ 1 V 10,20 5.0 750 0.85 0.75
Material
Ferrite
Packing Standard
Taped / Reel
1000 [-01]
