Chip Inductors for RF Applications (Wire wound - open)

0603F

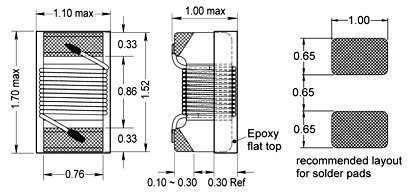

Technical Data & Specifications :

Complete Data Sheet :

S-parameter :

Print :


Part No Inductance
L (nH)
fL
(MHz)
Tol
± (%)
Q
min
fQ
(MHz)
SRF
(MHz)
DCR
max
(Ω)
Rated DC
Current
(A)
Get Sample
0603F-047K-YY 47 7.9 10 12 7.9 1500 min 0.075 1.40
0603F-072K-YY 72 7.9 10 12 7.9 1400 min 0.12 1.40
0603F-R10K-YY 100 7.9 10 12 7.9 1150 min 0.13 1.40
0603F-R12K-YY 120 7.9 10 12 7.9 1100 min 0.15 1.40
0603F-R15K-YY 150 7.9 10 12 7.9 1050 min 0.15 1.30
0603F-R18K-YY 180 7.9 10 12 7.9 950 min 0.15 1.30
0603F-R22K-YY 220 7.9 10 12 7.9 800 min 0.16 0.95
0603F-R24K-YY 240 7.9 10 12 7.9 800 min 0.16 0.95
0603F-R27K-YY 270 7.9 10 12 7.9 775 min 0.30 0.71
0603F-R33K-YY 330 7.9 10 12 7.9 725 min 0.46 0.56
0603F-R39K-YY 390 7.9 10 12 7.9 620 min 0.51 0.50
0603F-R47K-YY 470 7.9 10 12 7.9 540 min 0.62 0.42
0603F-R56K-YY 560 7.9 10 12 7.9 525 min 0.44 0.55
0603F-R68K-YY 680 7.9 10 12 7.9 260 min 0.52 0.47
0603F-R78K-YY 780 7.9 10 12 7.9 460 min 0.69 0.39
0603F-R82K-YY 820 7.9 10 12 7.9 410 min 0.83 0.40
0603F-1R0K-YY 1000 7.9 10 12 7.9 280 min 1.10 0.40
0603F-1R2K-YY 1200 7.9 10 12 7.9 230 min 1.70 0.35
0603F-1R5K-YY 1500 7.9 10 12 7.9 230 min 1.70 0.35
0603F-1R8K-YY 1800 7.9 10 12 7.9 170 typ 1.85 0.35
0603F-2R2K-YY 2200 7.9 10 12 7.9 140 typ 2.00 0.32
Material
Ferrite
Standard Tolerance
Refer to table.
Engineer's Kits
EK-0603F-X
Remarks

i) For not listed inductance values please check availability with us.
ii) 2% and 5% tolerance available on request.

Packing Standard
Taped / Reel
4000 [-01]
1000 [-08]
15000 [-04]
