Chip Inductors for RF Applications (Wire wound - open)

0805AQ

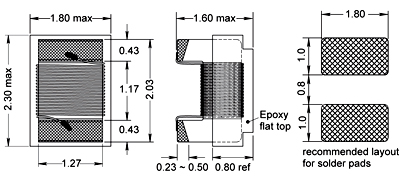

Technical Data & Specifications :

Complete Data Sheet :

S-parameter :

Print :


Part No Inductance
L (nH)
fL
(MHz)
Tol
± (%)
Q
min
fQ
(MHz)
SRF
min
(MHz)
DCR
max
(Ω)
Rated DC
Current
(mA)
Get Sample
0805AQ-2N5K-YY 2.5 250 10 80 1500 >6000 0.020 1600
0805AQ-2N7K-YY 2.7 250 10 67 1500 >6000 0.020 1600
0805AQ-5N6K-YY 5.6 250 10 98 1500 >6000 0.035 1600
0805AQ-6N2K-YY 6.2 250 10 88 1000 4750 0.035 1600
0805AQ-8N7K-YY 8.7 250 10 50 1000 5300 0.045 1600
0805AQ-011J-YY 11 250 5 83 1000 3000 0.060 1600
0805AQ-012J-YY 12 250 5 80 1000 3000 0.045 1600
0805AQ-015J-YY 15 250 5 78 500 2950 0.060 1500
0805AQ-016J-YY 16 250 5 78 500 2950 0.060 1500
0805AQ-018J-YY 18 250 5 76 500 2550 0.060 1400
0805AQ-020J-YY 20 250 5 74 500 2050 0.055 1400
0805AQ-022J-YY 22 250 5 60 500 2050 0.070 1400
0805AQ-027J-YY 27 250 5 75 500 2000 0.070 1300
0805AQ-030J-YY 30 250 5 69 500 1950 0.095 1200
0805AQ-039J-YY 39 250 5 74 500 1600 0.110 1100
0805AQ-047J-YY 47 200 5 85 500 1400 0.095 1200
0805AQ-048J-YY 48 200 5 71 500 1400 0.095 1200
0805AQ-051J-YY 51 200 5 65 500 1400 0.120 1000
0805AQ-056J-YY 56 200 5 75 500 1400 0.120 1000
Material
Ceramic
Standard Tolerance
Refer to table.
Engineer's Kits
EK-0805AQ-X
Remarks

i) For not listed inductance values please check availability with us.
ii) 2% and 5% tolerance available on request.

Packing Standard
Taped / Reel
2500 [-01]
7500 [-04]
1000 [-08]
