Plugable Inductors (Pin Type Coils)

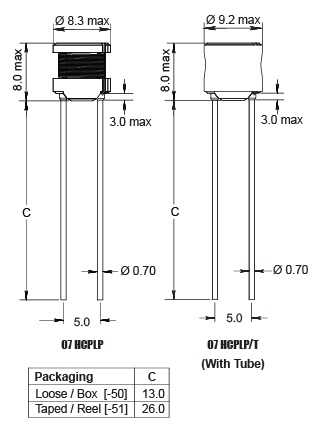

07HCPLP, 07HCPLP/T

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L (µH)		 fL
(kHz)		 Tol
± (%)		 SRF
typ
(MHz)		 DCR
max
(Ω)		 Rated DC Current (A) Get Sample
| max |sat typ
07HCPLP-1R5M-YY 1.5 100 @ 0.25 V 20 85.00 0.02 5.60 10.50
07HCPLP-100M-YY 10 100 @ 0.25 V 20 20.00 0.05 3.75 5.50
07HCPLP-470M-YY 47 100 @ 0.25 V 20 7.55 0.15 1.68 2.30
07HCPLP-121M-YY 120 100 @ 0.25 V 20 4.30 0.38 0.98 1.50
07HCPLP-221M-YY 220 100 @ 0.25 V 20 3.20 0.72 0.70 1.20
07HCPLP-331M-YY 330 100 @ 0.25 V 20 2.70 1.00 0.60 1.05
07HCPLP-471M-YY 470 100 @ 0.25 V 20 2.20 1.55 0.45 0.85
07HCPLP-681M-YY 680 100 @ 0.25 V 20 1.80 2.00 0.42 0.75
07HCPLP-102M-YY 1000 100 @ 0.25 V 20 1.50 3.20 0.35 0.55
07HCPLP-153M-YY 15000 100 @ 0.25 V 20 0.31 50 0.10 0.15
Material
Ferrite
Packing Standard
Loose / Box Taped / Reel
500 [-50] 500 [-51]
