Plugable Indutors (Pin Type Coils)

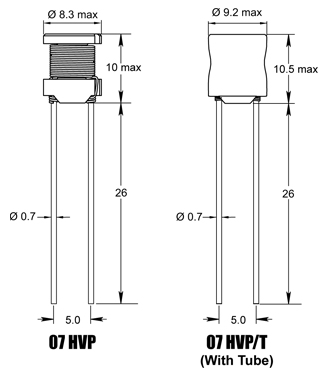

07HVP, 07HVP/T

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L (µH)		 fL
(kHz)		 Tol
± (%)		 DCR
max
(Ω)		 Rated DC Current (A) Get Sample
| max |sat typ
07HVP-560K-51 56 1 @ 0.25 V 10 0.13 1.93 1.97
07HVP-101K-51 100 1 @ 0.25 V 10 0.23 1.44 1.60
07HVP-121K-51 120 1 @ 0.25 V 10 0.29 1.14 1.45
07HVP-221K-51 220 1 @ 0.25 V 10 0.52 1.00 1.10
07HVP-271K-51 270 1 @ 0.25 V 10 0.70 0.68 1.00
07HVP-331K-51 330 1 @ 0.25 V 10 0.75 0.68 0.90
07HVP-471K-51 470 1 @ 0.25 V 10 1.18 0.58 0.75
07HVP-681K-51 680 1 @ 0.25 V 10 1.57 0.57 0.68
07HVP-821K-51 820 1 @ 0.25 V 10 1.97 0.53 0.59
07HVP-102K-51 1000 1 @ 0.25 V 10 2.57 0.44 0.50
07HVP-122K-51 1200 1 @ 0.25 V 10 2.98 0.34 0.55
07HVP-222K-51 2200 1 @ 0.25 V 10 5.20 0.26 0.32
Material
Ferrite
Standard Tolerance
10%
Packing Standard
Packing Form Taped / Reel
radial 500 [-51]
