Plugable Inductors (Pin Type Coils)

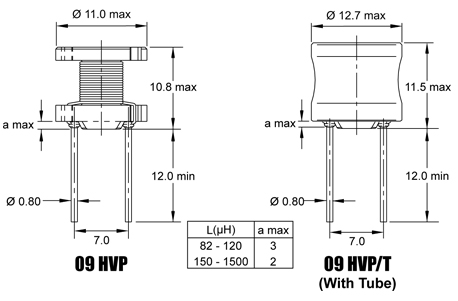

09HVP, 09HVP/T

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L (µH)		 fL
(kHz)		 Tol
± (%)		 DCR
max
(Ω)		 Rated DC Current (A) Get Sample
| max |sat typ
09HVP-820X-50 82 100 @ 1 V 10,20 0.086 2.32 2.20
09HVP-101X-50 100 100 @ 1 V 10,20 0.100 2.40 2.03
09HVP-121X-50 120 100 @ 1 V 10,20 0.135 1.92 1.82
09HVP-151X-50 150 100 @ 1 V 10,20 0.175 1.76 1.66
09HVP-181X-50 180 100 @ 1 V 10,20 0.200 1.68 1.50
09HVP-221X-50 220 100 @ 1 V 10,20 0.225 1.52 1.44
09HVP-271X-50 270 100 @ 1 V 10,20 0.300 1.36 1.27
09HVP-331X-50 330 100 @ 1 V 10,20 0.350 1.28 1.16
09HVP-391X-50 390 100 @ 1 V 10,20 0.450 1.12 1.05
09HVP-471X-50 470 100 @ 1 V 10,20 0.515 1.04 0.98
09HVP-561X-50 560 100 @ 1 V 10,20 0.585 1.00 0.88
09HVP-681X-50 680 100 @ 1 V 10,20 0.680 0.96 0.85
09HVP-821X-50 820 100 @ 1 V 10,20 0.910 0.80 0.76
09HVP-102X-50 1000 100 @ 1 V 10,20 1.060 0.72 0.73
09HVP-152X-50 1500 100 @ 1 V 10,20 1.900 0.50 0.50
Material
Ferrite
Standard Tolerance
10%
Remarks

Packing Standard : 500 [-50] (5 Trays / Box)

Packing Standard
Packing Form Tray / Box
radial 500 [-50] (5 Trays / Box)
