SMD Power Inductors

PISMHV

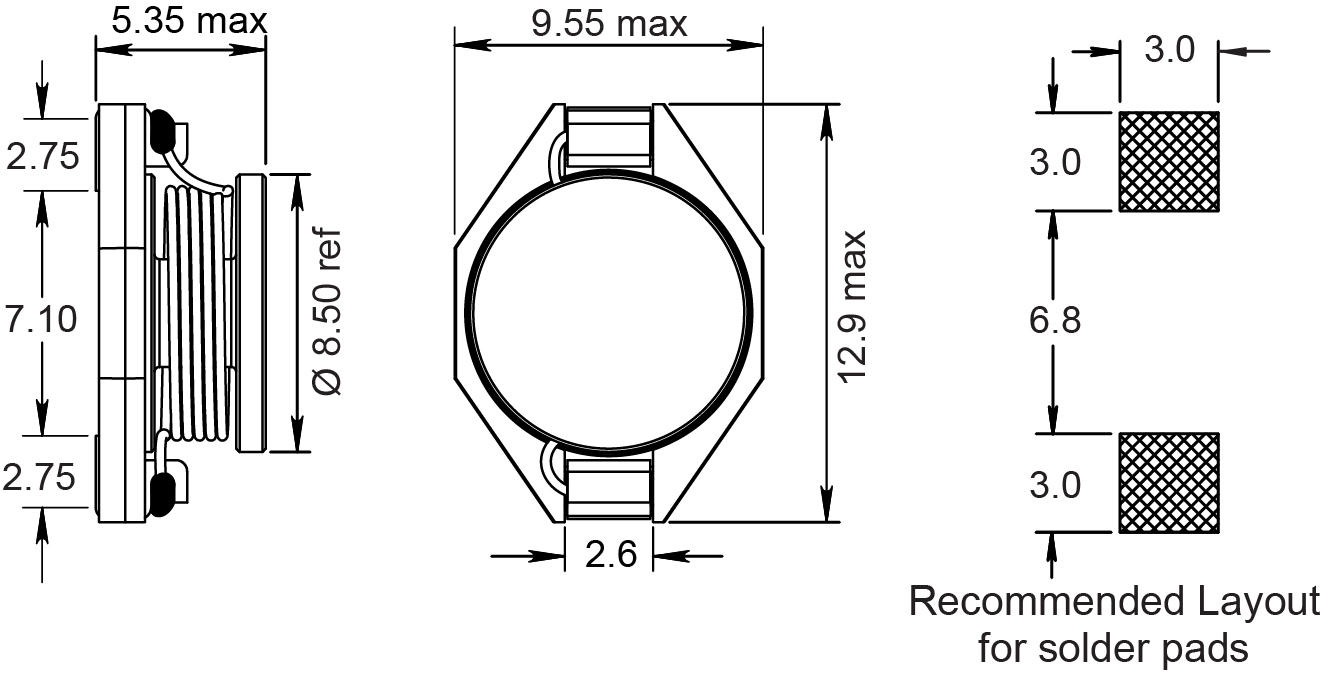

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L (µH)		 fL
(MHz)		 Tol
± (%)		 SRF
min
(MHz)		 DCR
max
(Ω)		 Rated DC Current (A) Get Sample
| sat typ | ΔT = 40°C max
PISMHV-120M-04 12 0.1/1V 20 24 0.040 3.11 3.32
PISMHV-150M-04 15 0.1/1V 20 22 0.050 2.80 2.90
PISMHV-220M-04 22 0.1/1V 20 17 0.066 2.30 2.40
PISMHV-330M-04 33 0.1/1V 20 13 0.097 1.83 1.97
PISMHV-470M-04 47 0.1/1V 20 11 0.145 1.50 1.64
PISMHV-680M-04 68 0.1/1V 20 9.2 0.192 1.26 1.45
PISMHV-101M-04 100 0.1/1V 20 7.5 0.286 1.03 1.19
PISMHV-151M-04 150 0.1/1V 20 6.0 0.405 0.85 1.10
PISMHV-221M-04 220 0.1/1V 20 4.6 0.641 0.71 0.85
PISMHV-331M-04 330 0.1/1V 20 3.9 1.030 0.60 0.68
PISMHV-471M-04 470 0.1/1V 20 3.2 1.459 0.50 0.56
PISMHV-681M-04 680 0.1/1V 20 2.7 2.223 0.45 0.48
PISMHV-102M-04 1000 0.1/1V 20 2.0 3.483 0.35 0.40
PISMHV-222M-04 2200 0.1/1V 20 1.4 7.967 0.26 0.24
Material
Core : Ferrite, Base : Plastic
Standard Tolerance
±20%
Remarks

For High Voltages up to 400V DC.

Packing Standard
Taped / Reel
750 [-04]
