SMD Power Inductors

PISNHV

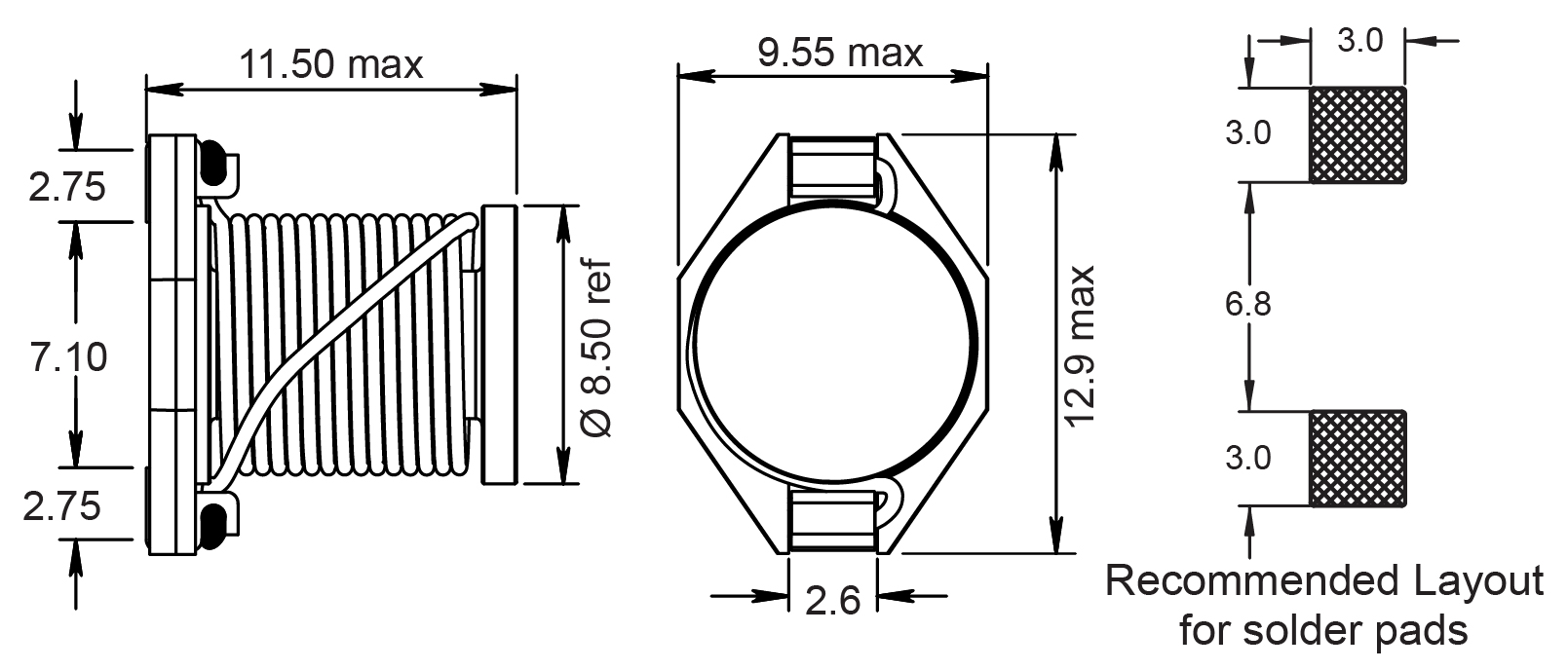

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L (µH)		 fL
(kHz)		 Tol
± (%)		 SRF
typ
(MHz)		 DCR
max
(Ω)		 Rated DC Current (A) Get Sample
| sat typ | ΔT = 40°C max
PISNHV-220M-04 22 100/1V 20 10 0.050 4.82 3.27
PISNHV-330M-04 33 100/1V 20 8.58 0.070 3.89 2.72
PISNHV-470M-04 47 100/1V 20 6.52 0.095 3.24 2.31
PISNHV-680M-04 68 100/1V 20 5.42 0.147 2.68 1.70
PISNHV-101M-04 100 100/1V 20 4.46 0.190 2.24 1.51
PISNHV-151M-04 150 100/1V 20 3.19 0.290 1.84 1.19
PISNHV-221M-04 220 100/1V 20 2.57 0.410 1.52 1.04
PISNHV-331M-04 330 100/1V 20 2.29 0.640 1.24 0.83
PISNHV-471M-04 470 100/1V 20 1.97 0.900 1.06 0.72
PISNHV-681M-04 680 100/1V 20 1.47 1.200 0.90 0.60
PISNHV-102M-04 1000 100/1V 20 1.28 2.000 0.78 0.48
PISNHV-222M-04 2200 100/1V 20 0.75 3.850 0.44 0.30
PISNHV-103M-04 10000 100/1V 20 0.38 18.77 0.24 0.15
Material
Core : Ferrite, Base : Plastic
Standard Tolerance
±20%
Remarks

For High Voltages up to 400V DC.

Packing Standard
Taped / Reel
250 [-04]
