Suppression Coils (now also in SMD version)

MESC

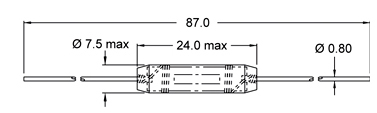

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L (µH)
fL
(kHz)
Tol
± (%)
DCR
max
(mΩ)
Rated DC
Current
(A)
Material Get Sample
MESC-3R0M-01 3 1000 20 22 6.0 Iron Dust
MESC-3R3M-01 3.3 100 20 22 1.61 Iron Dust
MESC-5R0M-01 5 1000 20 41 4.0 Iron Dust
MESC-100M-01 10 1000 20 105 3.0 Iron Dust
MESC-150M-01 15 100 20 198 2.0 Iron Dust
MESC-250M-01 25 100 20 408 1.5 Iron Dust
MESC-550M-01 55 100 20 1560 0.7 Iron Dust
MESC-131M-01 130 100 20 5760 0.4 Iron Dust
MESC-161M-01 160 100 20 7920 0.3 Iron Dust
MESC-351M-01 350 100 20 25200 0.15 Iron Dust
MESC-7R0M-01 7 1000 20 24 6.0 Ferrite
MESC-120M-01 12 100 20 48 4.0 Ferrite
MESC-220M-01 22 100 20 84 3.0 Ferrite
MESC-400M-01 40 100 20 216 2.0 Ferrite
MESC-560M-01 56 100 20 360 1.5 Ferrite
MESC-750M-01 75 100 20 780 0.7 Ferrite
MESC-101M-01 100 100 20 780 1.0 Ferrite
MESC-221M-01 220 100 20 3120 0.5 Ferrite
MESC-331M-01 330 100 20 5300 0.3 Ferrite
MESC-471M-01 470 100 20 7800 0.3 Ferrite
MESC-681M-01 680 100 20 16800 0.2 Ferrite
MESC-122M-01 1200 100 20 40800 0.1 Ferrite
MESC-152M-01 1500 100 20 64800 0.08 Ferrite
Material
Iron Dust / Ferrite
Standard Tolerance
±20%
Remarks

- Available also without insulating material (MESC/B).

Packing Standard
Packing Form Taped / Reel
axial 1000 [-01]
