Wide Band Chokes and Beads

06H

Technical Data & Specifications :

Complete Data Sheet :

S-parameter :

Print :


Part No Impedance
Z min (Ω)
Turns Rated DC
Current
(A)

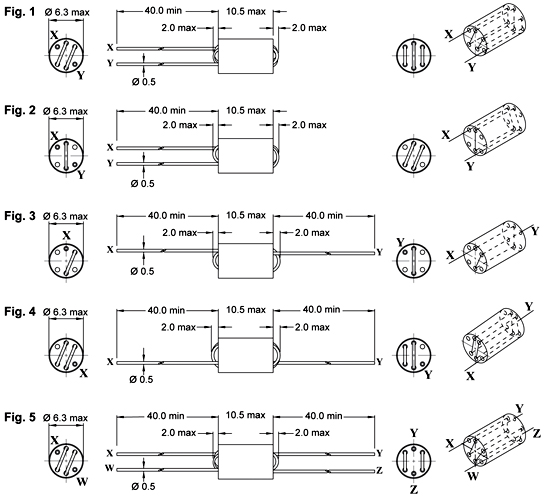

Fig SPQ:
Loose / Box
Get Sample
06H-351X-00 300Ω @ 120MHz 1.0 3 600
06H-451X-00 350Ω @ 250MHz 1.0 3 600
06H-551X-50 800Ω @ 50MHz 3 1.0 1 500
06H-651X-50 520Ω @ 50MHz 2 1.0 2 500
06H-751X-00 600Ω @ 50MHz 1.0 4 600
06H-851X-00 700Ω @ 180MHz 1.0 4 600
06H-881X-50 750Ω @ 180MHz 3 1.0 1 500
06H-901X-00 350Ω @ 50MHz 2 x 1½ 1.0 5 400
06H-951X-00 700Ω @ 180MHz 3.0 4 600
06H-102X-00 400Ω @ 110MHz 2 x 1½ 1.0 5 400
Material
Ferrite
Remarks

All models are available with insulation tube (06 H/T)

Packing Standard
Packing Form Loose / Box
axial 400/600 [-00] / 500 [-50]
