Chip Inductors for RF Applications (Wire wound - open)

0603AQ

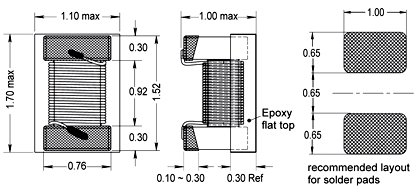

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L (nH)
fL
(MHz)
Tol
± (%)
Q
min
fQ
(MHz)
SRF
(GHz)
DCR
max
(Ω)
Rated DC
Current
(A)
Get Sample
0603AQ-1N1M-YY 1.15 500 20 35 500 12.30 min 0.020 3.20
0603AQ-2N6M-YY 2.6 500 20 45 500 9.30 min 0.020 2.30
0603AQ-4N5K-YY 4.5 500 10 56 500 5.80 min 0.020 2.00
0603AQ-5N0K-YY 5.0 500 10 50 500 5.30 min 0.023 1.40
0603AQ-6N8J-YY 6.8 500 5 55 500 4.70 min 0.035 1.70
0603AQ-7N6J-YY 7.6 500 5 51 500 4.40 min 0.035 1.43
0603AQ-010J-YY 10.4 500 5 54 500 3.74 min 0.035 1.50
0603AQ-015J-YY 15 500 5 54 500 3.30 min 0.035 1.40
0603AQ-022J-YY 22 500 5 54 500 2.43 min 0.070 1.20
0603AQ-023J-YY 23 500 5 54 500 2.62 min 0.130 1.00
0603AQ-029J-YY 29 500 5 54 500 2.43 min 0.130 0.90
0603AQ-034J-YY 34 500 5 53 500 2.25 min 0.140 0.80
0603AQ-042J-YY 42 500 5 54 500 2.00 min 0.220 0.68
0603AQ-047J-YY 47 500 5 52 500 2.00 min 0.310 0.57
0603AQ-056J-YY 56 500 5 54 500 1.76 min 0.400 0.44
0603AQ-R10J-YY 100 500 5 49 500 1.20 min 0.650 0.36
0603AQ-R12J-YY 120 500 5 49 500 1.20 min 0.900 0.25
0603AQ-R15J-YY 150 500 5 48 500 1.13 min 1.320 0.20
0603AQ-R18J-YY 180 500 5 42 500 0.80 typ 1.610 0.19
0603AQ-R22K-YY 220 500 10 27 500 0.80 typ 1.610 0.19
Material
Ceramic
Standard Tolerance
Refer to table.
Engineer's Kits
EK-0603AQ-X
Remarks

i) For not listed inductance values please check availability with us.
ii) 2% and 5% tolerance available on request.

Packing Standard
Taped / Reel
4000 [-01]
1000 [-08]
15000 [-04]
