SMD Power Inductors (Shielded)

SPISM

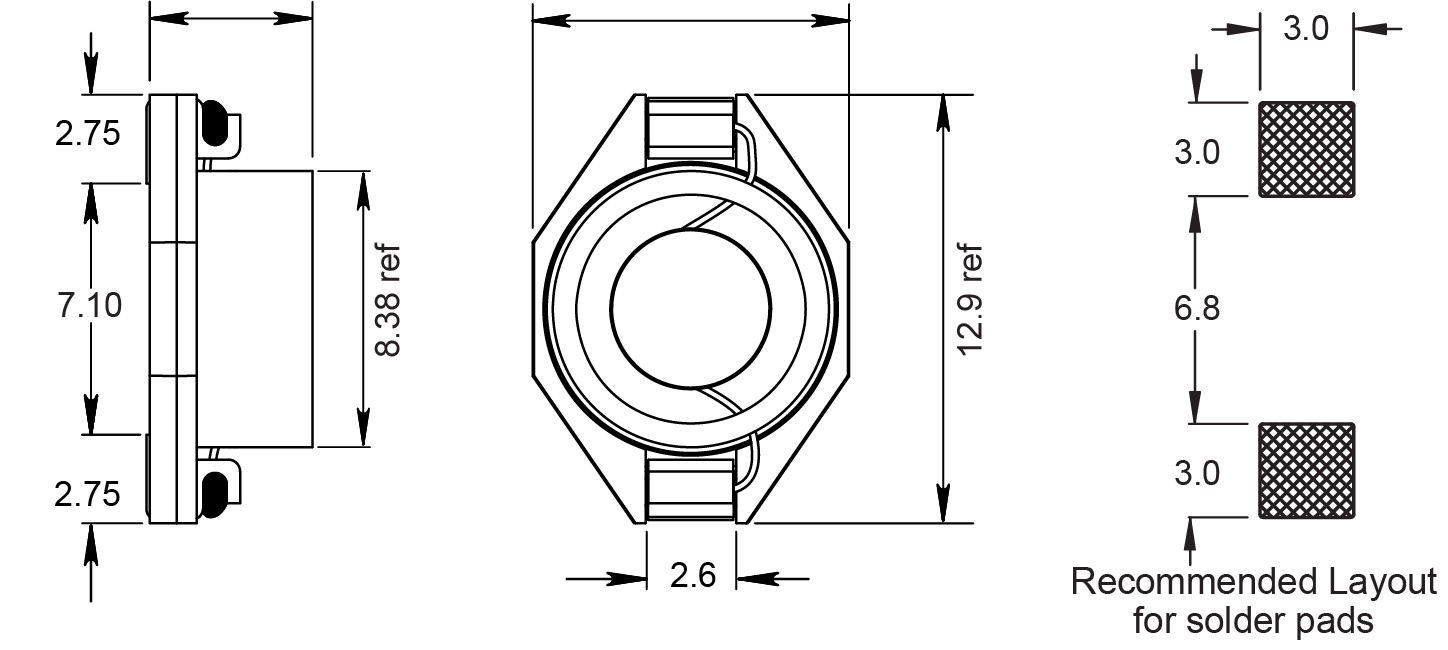

Technical Data & Specifications :

Complete Data Sheet :

Print :


Part No Inductance
L (µH)		 fL
(kHz)		 Tol
± (%)		 SRF
typ
(MHz)		 DCR
max
(Ω)		 Rated DC Current (A) Get Sample
| sat | ΔT = 40°C
SPISM-1R0M-04 1.0 100 @ 0.1V 20 100 0.021 5.6 5.0
SPISM-1R5M-04 1.5 100 @ 0.1V 20 89 0.022 5.2 4.5
SPISM-2R2M-04 2.2 100 @ 0.1V 20 71 0.032 5.0 3.8
SPISM-3R3M-04 3.3 100 @ 0.1V 20 57 0.039 3.9 3.3
SPISM-4R7M-04 4.7 100 @ 0.1V 20 40 0.054 3.2 2.7
SPISM-6R8M-04 6.8 100 @ 0.1V 20 38 0.075 2.8 2.2
SPISM-8R2M-04 8.2 100 @ 0.1V 20 36 0.085 2.6 2.1
SPISM-100M-04 10 100 @ 0.1V 20 32 0.101 2.4 2.0
SPISM-150M-04 15 100 @ 0.1V 20 25 0.150 2.0 1.5
SPISM-220M-04 22 100 @ 0.1V 20 17 0.207 1.6 1.3
SPISM-330M-04 33 100 @ 0.1V 20 14 0.334 1.4 1.1
SPISM-470M-04 47 100 @ 0.1V 20 12 0.472 1.0 0.8
SPISM-680M-04 68 100 @ 0.1V 20 9 0.66 0.9 0.7
SPISM-101M-04 100 100 @ 0.1V 20 6 1.11 0.8 0.6
SPISM-151M-04 150 100 @ 0.1V 20 6 1.55 0.6 0.5
SPISM-221M-04 220 100 @ 0.1V 20 4 2.00 0.5 0.37
SPISM-471M-04 470 100 @ 0.1V 20 2 5.00 0.4 0.19
SPISM-102M-04 1000 100 @ 0.1V 20 2 8.30 0.32 0.17
Material
Core : Ferrite, Base : Plastic
Standard Tolerance
±20%
Packing Standard
Taped / Reel
1000 [-04]
