Chip Inductors for Power Applications

Chip Inductors for Power Applications 09 Jul 2026

Chip Inductors for Power Applications

Part No.

Inductance L (nH)

fL (MHz)

Tol ± (%)

Q typ @ 900 MHz

Q typ @ 1.7 GHz

Q typ @ 2.4 GHz

SRF typ (GHz)

DCR max (Ω)

Rated DC Current (A)

Get Sample

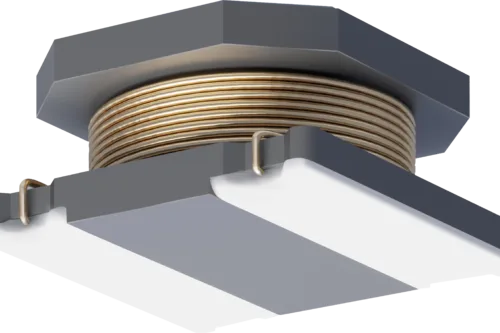

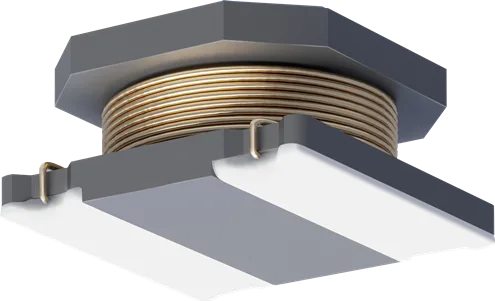

1616FP
Inductance Range(L)
1.0 µH - 100 µH

Self Resonant Frequency
10 MHz - 145 MHz

DC Resistance
50 mΩ - 2350 mΩ
New
Learn More
1616FPS
Inductance Range(L)
0.47 µH - 220 µH

DC Resistance
20.8 mΩ - 3552 mΩ

Rated DC Current
0.28 A - 4.00 A

Learn More
242408FPS
Inductance Range(L)
0.5 µH - 47 µH

DC Resistance
11.7 mΩ - 444 mΩ

Rated DC Current
0.8 A - 5.2 A

Learn More
242418FPS
Inductance Range(L)
1.0 µH - 220 µH

DC Resistance
13.0 mΩ - 1104 mΩ

Rated DC Current
0.5 A - 6.5 A

Learn More

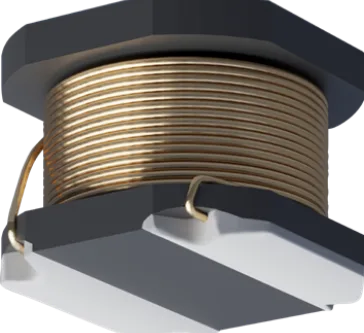

242418FP
Inductance Range(L)
1.2 µH - 1000 µH

Self Resonant Frequency
1.70 MHz - 145 MHz

DC Resistance
18 mΩ - 5200 mΩ

Learn More
1212FPS
Inductance Range(L)
1.0 µH - 100 µH

Self Resonant Frequency
11 MHz - 145 MHz

DC Resistance
40 mΩ - 2433 mΩ

Learn More
